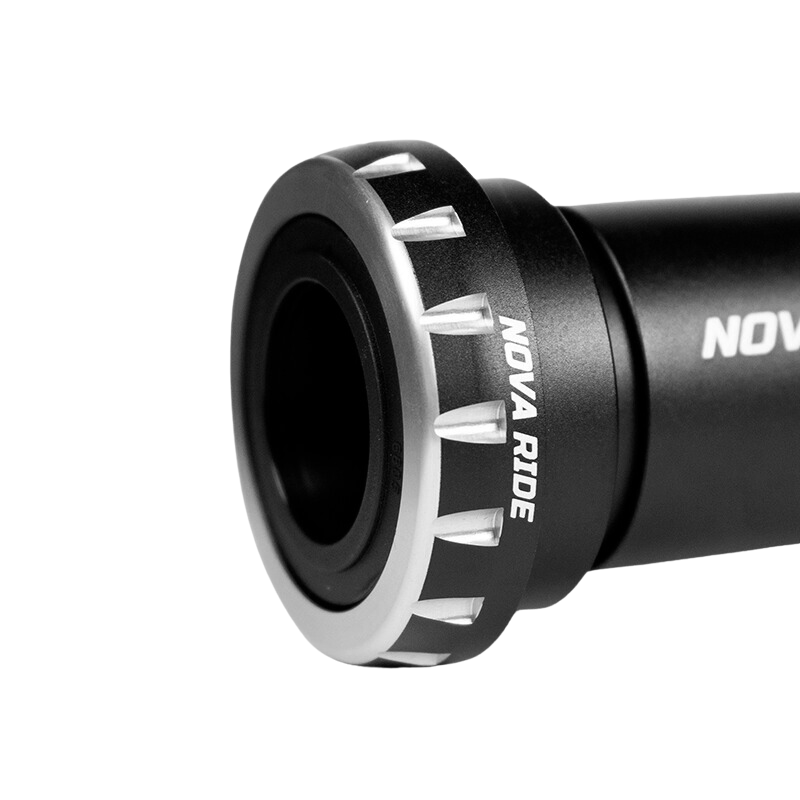

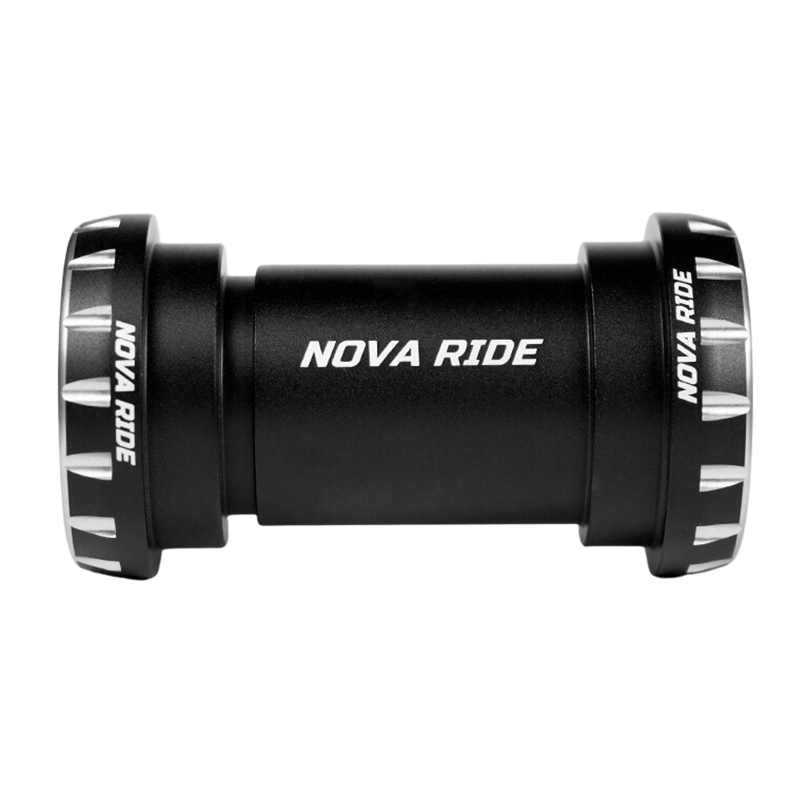

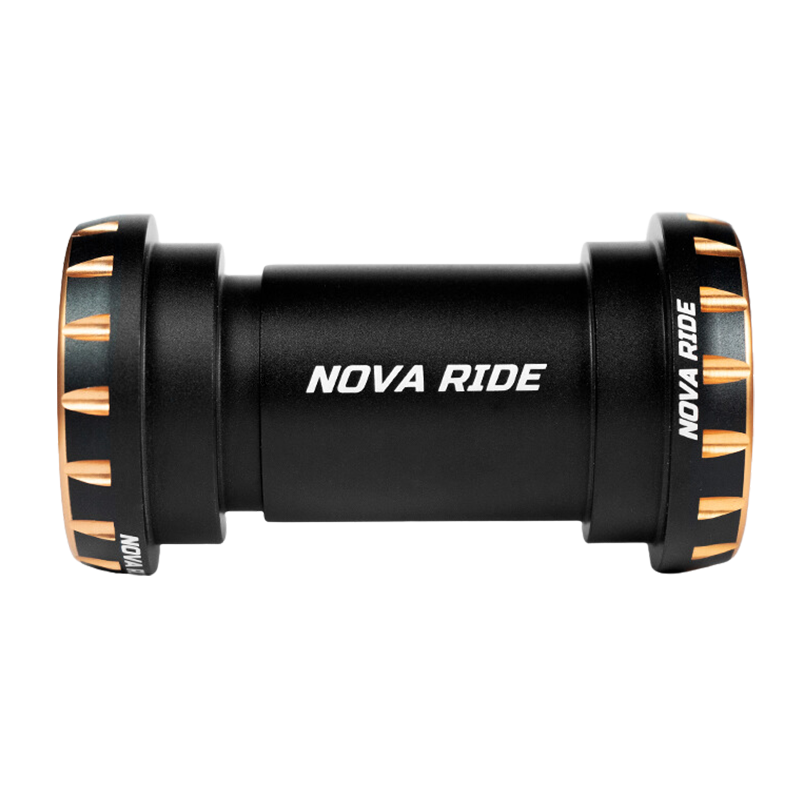

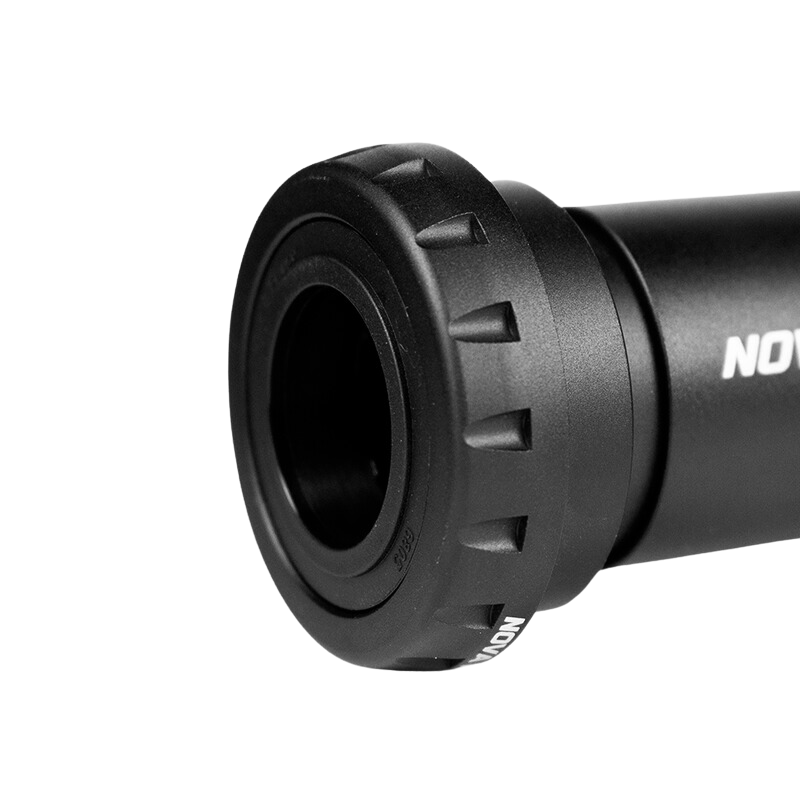

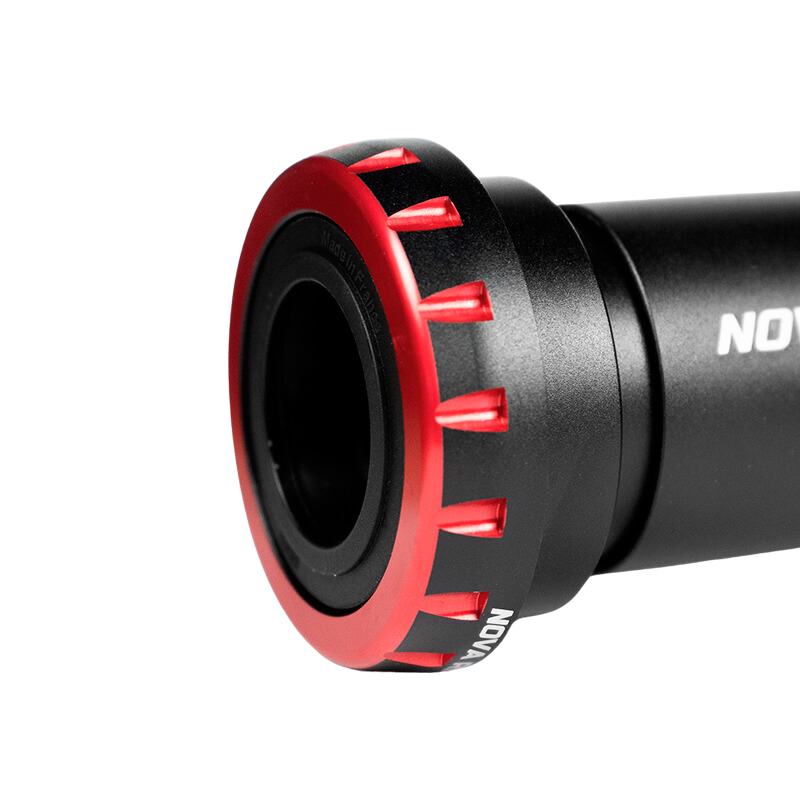

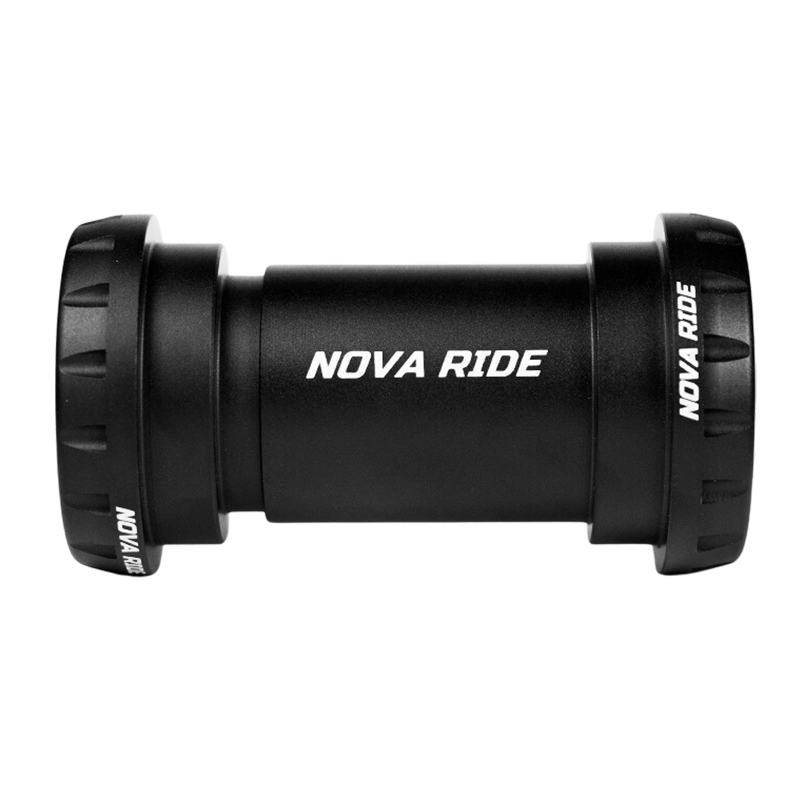

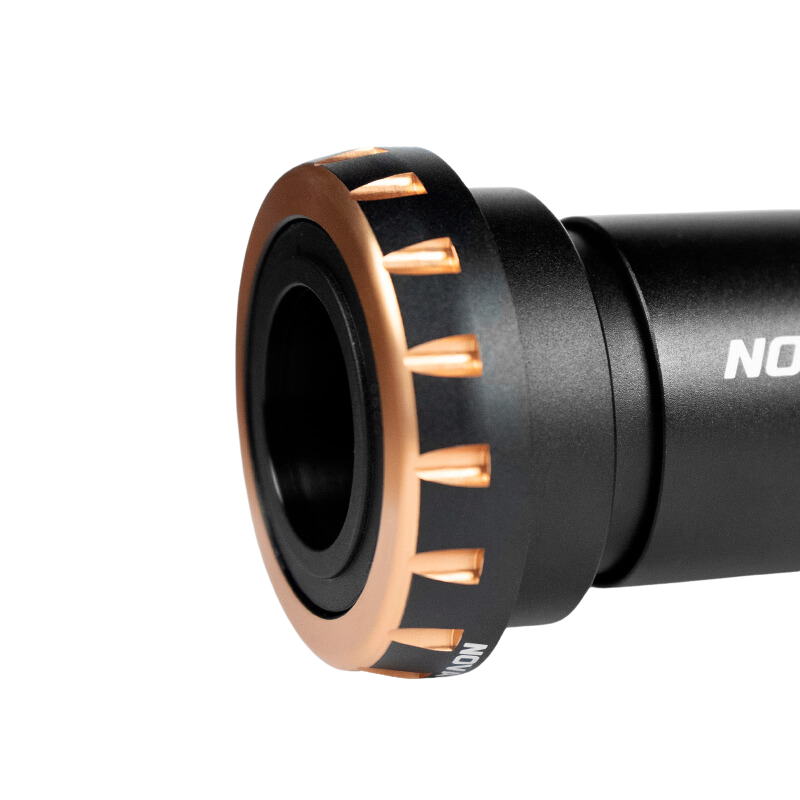

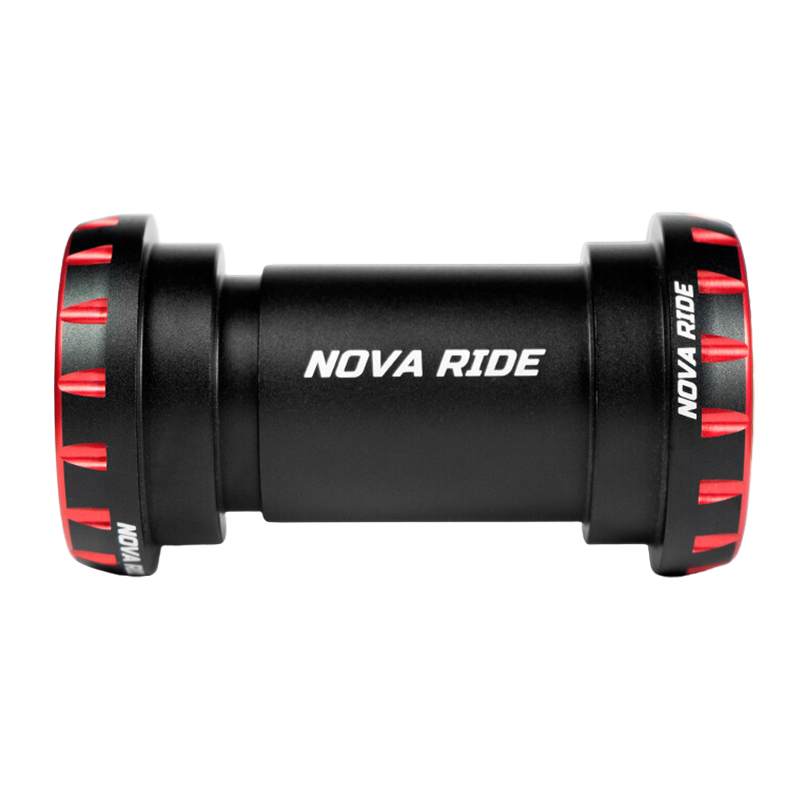

CBB BB30 for Shimano
BB30: A standard used by Cannondale.
Specifications:
Internal shell diameter : 42mm
Shell width : 68 / 73mm
Crankset Diameter : 24mm (Shimano crankset type).
Weight: 178 g.
Installation: CBB Flat KEY assembly tool included.
Free for orders over €200.
4 years warranty.
Over 700 verified reviews, one same high standard.
High-performance components, fast delivery, and a customer service ready to assist you.
The cyclists who have placed their trust in us are the best people to talk about us—discover their testimonials on Trustpilot.
Shipping costs, delivery times & potential customs fees : Learn more.
The heart of your frame
Absolute Performance & Precision
Ceramic balls — Deliver a minimal friction coefficient, extreme hardness, and ideal thermal inertia to maximize power transfer.
Black-Oxide treatment — Applied to the races for superior corrosion resistance and optimal grease retention.
Threaded Press-Fit Solution
The two cups screw together to ensure rigid cohesion and millimetric alignment.
Corrects frame alignment imperfections while preventing the micro-movements typical of standard PressFit bottom brackets, thereby extending bearing lifespan.
Multi-Barrier Sealing
Total protection — Combines a sealed internal system, custom-engineered reinforced polyamide dust covers, and precision bearing seals to block out water, mud, and dust.
Anti-friction protective dust covers — The bearings' first line of defense, fully removable to simplify maintenance.
TECHNICAL SPECIFICATION
Design: Threaded Press-Fit solution.
Internal Sealing: Integrated internal system within the bottom bracket shell.
External Sealing: Protective dust covers.
Cups : Machined from 7075-T6 aluminum, featuring a single-color or dual-color anodized finish.
Protective covers : Made of glass fiber-reinforced polyamide.
ABEC-5 ceramic hybrid.
Balls: Si3N4 ceramic (silicon nitride, grade 5).
Races: Black-Oxide treated 52100 High-Carbon chromium alloy.
Seals: LLB (dual-lip light-contact seals).
Grease: Kluber Isoflex NB52.
CBB Flat KEY tool included.
Learn more about their effectiveness in the attached full story below.
Our custom-built test benches simulate real-world, long-term conditions. They allow us to analyze the impact of time on performance and to optimize each component under controlled conditions.
Learn more
Installation
Precise installation is essential to ensure both the performance and maximum durability of your Nova Ride bottom bracket.
